The need for an ESP in ventilation is to remove potentially irritating and nuisance Particles that adversely affect human health and air handling Equipment. Particles of 10 μm size may be trapped in the nose and cause irritation and/or allergic reactions.
These particles can also soil surfaces and equipment. Such contamination can provide nutrients for biological growth in ductwork or cause duct corrosion, both of which contribute to indoor air quality (IAQ) degradation.
Filtration of large particles is needed to protect air-handling systems and equipment from contamination.
Those up to 10 μm are inhalable and affect the health-related aspects of Indoor Air Quality. Many allergens, fungi, and bioaerosols are in the 3 to 10 μm size range

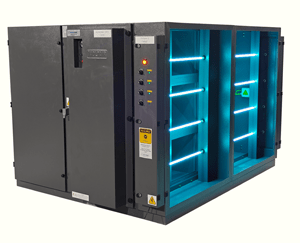

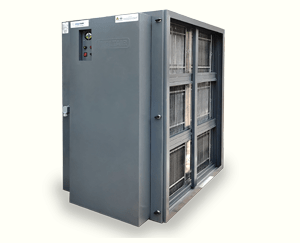

IV & UV
UV Details
UV LAMP WATTAGE – 130W * 04
UV OUTPUT – 660 micro watt/sqcm
OZONE OUTPUT – 12.6 Grams/hour (at standard conditions)
RATED LIFE – 10000 HOURS
CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY
OPERATOR INTERFACE – UV ON BLUE LED INDICATION
Technical Specifications
DIMENSIONS (mm) – H1030*696*L1865
METAL OF CONSTRUCTION – MS CRCA 1.6MM
FINISHING – 7 tank processed,industrial grey powder coat
ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 200 WATTS MAX
HIGH VOLTAGE –
Dual output PWM technology power supply unit short circuit, arc protection and
auto reset 1.0 Second recovery time CE certified power supply unit
SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.
CE CERTIFIED POWER SUPPLY UNIT.
SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.
AIR VOLUME – 9000 CFM – 13500 CFM MAX (15300 CMH – 22950 CMH MAX)
PARTICLE CAPTURE RANGE – 0.1 Micron Meter – 10 Micron Meter
MAXIMUM EFFICIENCY –
95% DOP single pass test
97% DOP double pass test complies ANSI / ASHRAE 52.2-2017 standard test procedure
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE
ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)
Number of Cells – 6
MESH FILTERS – 06 of aluminum mesh with SS304 frame
BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION
OPERATOR INTERFACE –
GREEN LED – HEALTHY
RED LED – CLEAN / MAINTENANCE
POWER ON/OFF SWITCH
AC PROTECTION FUSE
INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.
Download Datasheet
Additional Information

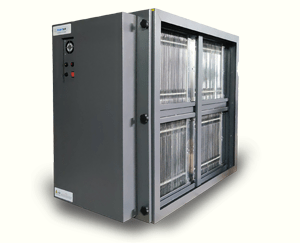

IV & UV
UV Details
UV LAMP WATTAGE – 130W * 04
UV OUTPUT – 420 micro watt/sqcm
OZONE OUTPUT – 8.4 Grams/hour ( at standard conditions)
RATED LIFE – 10000 HOURS
CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY
OPERATOR INTERFACE – UV ON BLUE LED INDICATION
Technical Specifications
DIMENSIONS (mm) – H515*W695*L2410
METAL OF CONSTRUCTION – MS CRCA 1.6MM
FINISHING – 7 TANK PROCESSED,INDUSTRIAL GREY POWDER COAT
ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 200WATTS MAX
HIGH VOLTAGE –
DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT.
SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.
CE CERTIFIED POWER SUPPLY UNIT.
SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.
AIR VOLUME – 6000 CFM – 8000 CFM (7020 CHM – 9360 CMH)
PARTICLE CAPTURE RANGE – 0.01 MICRON METER – 10 MICRON METER
MAXIMUM EFFICIENCY –
95% DOP SINGLE PASS TEST
97% DOP DOUBLE PASS TEST
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE
ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)
Number of Cells – 4
MESH FILTERS – 04 OF ALUMINIUM MESH WITH SS304 FRAME
BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION
OPERATOR INTERFACE –
GREEN LED – HEALTHY
RED LED – CLEAN / MAINTENANCE
POWER ON/OFF SWITCH
AC PROTECTION FUSE
INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.
Download Datasheet
Additional Information

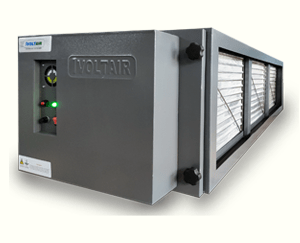

IV & UV
UV Details
UV LAMP WATTAGE – 130W * 02
UV OUTPUT – 420 micro watt/sqcm
OZONE OUTPUT – 4.2 Grams/hour ( at standard conditions)
RATED LIFE – 10000 HOURS
CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY
OPERATOR INTERFACE – UV ON BLUE LED INDICATION
Technical Specifications
DIMENSIONS (mm) – H515*W695*L1850
METAL OF CONSTRUCTION – MMS CRCA 1.6MM
FINISHING – 7 TANK PROCESSED, INDUSTRIAL GREY POWDER COAT
ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 150WATTS MAX
HIGH VOLTAGE –
DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT
SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.
CE CERTIFIED POWER SUPPLY UNIT.
SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.
AIR VOLUME – 4500 CFM – 6000 CFM (5260 – 7020 CMH)
PARTICLE CAPTURE RANGE – 0.01 MICRON METER – 10 MICRON METER
MAXIMUM EFFICIENCY –
95% DOP SINGLE PASS TEST
97% DOP DOUBLE PASS TEST
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE
ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)
Number of Cells – 3
MESH FILTERS – 03 OF ALUMINIUM MESH WITH SS304 FRAME
BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION
OPERATOR INTERFACE –
GREEN LED – HEALTHY
RED LED – CLEAN / MAINTENANCE
POWER ON/OFF SWITCH
AC PROTECTION FUSE
INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.
Download Datasheet
Additional Information

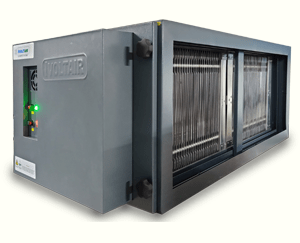

IV & UV
UV Details
UV LAMP WATTAGE – 75W * 02
UV OUTPUT – 230 micro watt/sqcm
OZONE OUTPUT – 2.42 Grams/hour ( at standard conditions)
RATED LIFE – 10000 HOURS
CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY
OPERATOR INTERFACE – UV ON BLUE LED INDICATION
Technical Specifications
DIMENSIONS (mm) – H515*W695*L1280
METAL OF CONSTRUCTION – MS CRCA 1.6MM
FINISHING – 7 TANK PROCESSED, INDUSTRIAL GREY POWDER COAT
ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 100WATTS MAX
HIGH VOLTAGE –
DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT
SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.
CE CERTIFIED POWER SUPPLY UNIT.
SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.
AIR VOLUME – 3000 – 4000 CFM (3510 – 4680 CMH)
PARTICLE CAPTURE RANGE – 0.01MICRON METER – 10 MICRON METER
MAXIMUM EFFICIENCY –
95% DOP SINGLE PASS TEST
97% DOP DOUBLE PASS TEST
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE
ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)
Number of Cells – 2
MESH FILTERS – 02 OF ALUMINIUM MESH WITH SS304 FRAME
BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION
OPERATOR INTERFACE –
GREEN LED – HEALTHY
RED LED – CLEAN / MAINTENANCE
POWER ON/OFF SWITCH
AC PROTECTION FUSE
INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.
Download Datasheet
Additional Information

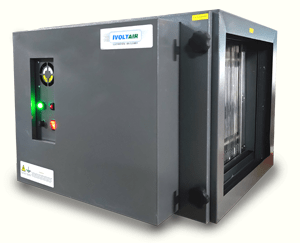

IV & UV
UV Details
UV LAMP WATTAGE – 40W * 02
UV OUTPUT – 115 micro watt/sqcm
OZONE OUTPUT – 1.24 Grams/hour ( at standard conditions)
RATED LIFE – 10000 HOURS
CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY
OPERATOR INTERFACE – UV ON BLUE LED INDICATION
Technical Specifications
DIMENSIONS (mm) – H515* W695* L720
METAL OF CONSTRUCTION – MS CRCA 1.6MM
FINISHING – 7 TANK PROCESSED, INDUSTRIAL GREY POWDER COAT
ELECTRICAL PARAMETERS – 110 – 220V AC, 50HZ, 50WATTS MAX
HIGH VOLTAGE –
DUAL OUTPUT PWM TECHNOLOGY POWER SUPPLY UNIT
SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME.
CE CERTIFIED POWER SUPPLY UNIT.
SAFETY FEATURES – DOOR SAFETY SWITCH INTEGRATED, EARTH LEAK TRIP.
AIR VOLUME – 1500-2000 CFM (1750-2340 CMH)
PARTICLE CAPTURE RANGE – 0.01MICRON METER – 10 MICRON METER
MAXIMUM EFFICIENCY –
95% DOP SINGLE PASS TEST
97% DOP DOUBLE PASS TEST
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE
ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)
Number of Cells – 1
MESH FILTERS – 01 OF ALUMINIUM MESH WITH SS304 FRAME
BMS CONNECTIVITY – NO VOLT RELAY FOR BMS MONITORING / ALARM INTEGRATION
OPERATOR INTERFACE –
GREEN LED – HEALTHY
RED LED – CLEAN / MAINTENANCE
POWER ON/OFF SWITCH
AC PROTECTION FUSE
INSTALLATION TYPE – CEILING SUSPENDED, FLOOR AND STAND MOUNT.
Download Datasheet
Additional Information
IV & UV
UV Details
UV LAMP WATTAGE – 40W – 130 WATTS
OZONE OUTPUT – 1.26 – 8.4 Grams/hour ( at standard conditions)
RATED LIFE – 10000 HOURS
CONTROL UNIT – DIGITAL TIMER WITH RUN HOURS DISPLAY
OPERATOR INTERFACE – UV ON BLUE LED INDICATION
Technical Specifications
DIMENSIONS (mm) – CUSTOM DESIGNED ACCORDING TO THE DEMAND
METAL OF CONSTRUCTION – MS CRCA 1.6MM
FINISHING – 7 TANK PROCESSED
ELECTRICAL PARAMETERS – 3PH NEUTRAL SYSTEM , 0.75KW – 7.5KW POWER
AIR VOLUME – 1500 CFM – 6500 CFM MAX (2550 CHM – 11050CMH MAX)
ESP CAPACITY –
1500CFM – 6000 CFM ( AS PER DEMAND) .
DUAL VOLTAGE PWM TECH POWER SUPPLY, SHORT CIRCUIT, ARC PROTECTION & AUTO RESET 1.0 SECOND RECOVERY TIME .
CE CERTIFIED POWER SUPPLY UNIT .
SAFETY FEATURES – DOOR SAFETY SWITCH, PRESSURE SWITCH INTEGRATED .
STATIC PRESSURE – 10MM WG FOR CLEAN UNIT, 15MM WG FOR CHOCKED UNIT
Particle Capture Range – 0.01 MICRON METER – 10 MICRON METER
MAXIMUM EFFICIENCY –
96% DOP SINGLE PASS TEST
99% DOP DOUBLE PASS TEST
COMPLIES ANSI/ASHRAE 52.2-2017 STANDARD TEST PROCEDURE
ESP CELL TECHNOLOGY – DUAL STAGE (IONIZER & COLLECTOR)
Number of Cells – VARIES FROM ACTUAL REQUIREMENT
Bag Filters – 1500CFM – 6000 CFM ( AS PER REQUIREMENT)
BMS CONNECTIVITY – MODBUS RS485 PROTOCOL, MONITOR/CONTROL
CONTROL UNIT –
CONTROL PANEL
FAN CONTROL OPERATIONS
ESP HEALTH MONITOR
PRESSURE LOSS MONITOR FOR BAG FILTER MAINTENANCE
INSTALLATION TYPE – WALL & FRAME MOUNT
Download Datasheet
Additional Information
IVOLTAIR™ units are low pressure loss and washable with an easy maintenance procedures.
Low pressure loss for a clean cell thus saves energy in long run and better savings comparatively with other filters.
High cleaning efficiency up to 96% found on DOP single pass test.
Particle collection from 0.01micron to 10 micron meters.
Easy washable pre-mesh filters and mechanically rugged cell.
Semi-spiked zigzag plate type Ionizer (IVOLTAIR R&D) module for maximum particle charging and no breakage or rust, Precision designed collector module for maximum collection efficiency.
CE certified High voltage direct current PWM technology based solid state power supply module.
Particle collection from 0.01micron to 10 micron meters.

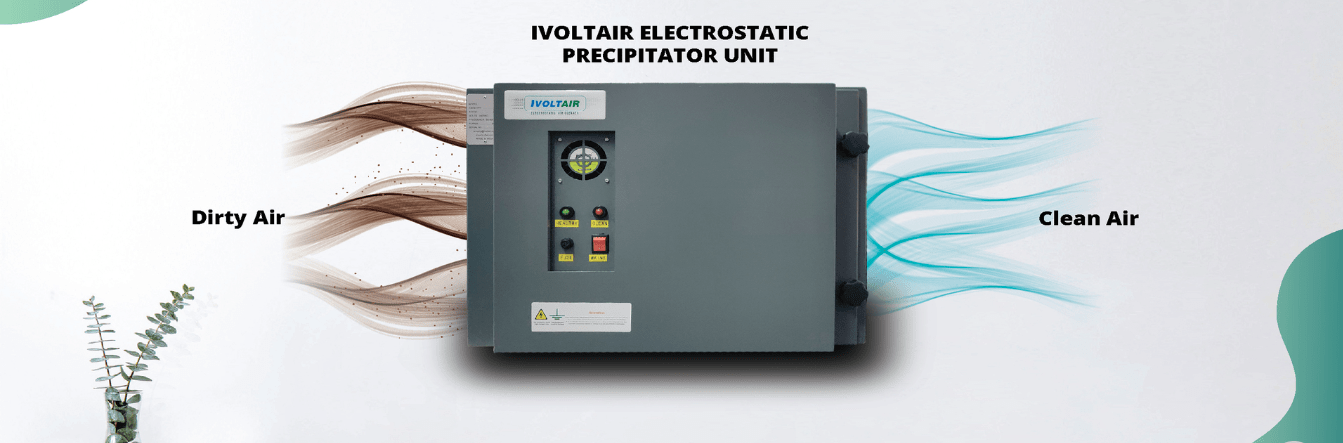

IVOLTAIR’s High efficient Electrostatic air cleaners are designed and manufactured with latest technology standards and upgrades with an aim of air pollution control and prevention, IVOLTAIR’s electrostatic air cleaners are ideal for removing oil, smoke and fly ash from wood-fire cooking kitchen applications as well industrial Dust as a Dry Scrubber, oil mists and smoke from industrial processes.
